NTC THERMISTIOR 板上熱敏電阻 |
|
系列名稱
|
型號
|
端子電極
|
使用溫度範圍
°C
|
電阻值範圍
°C
|
 |
|
TN05
, TC05
|
角板形貼片熱敏電阻
|
鍍錫
|
-
40 ~ + 125
|
40
~ 2M |
 |
|
|

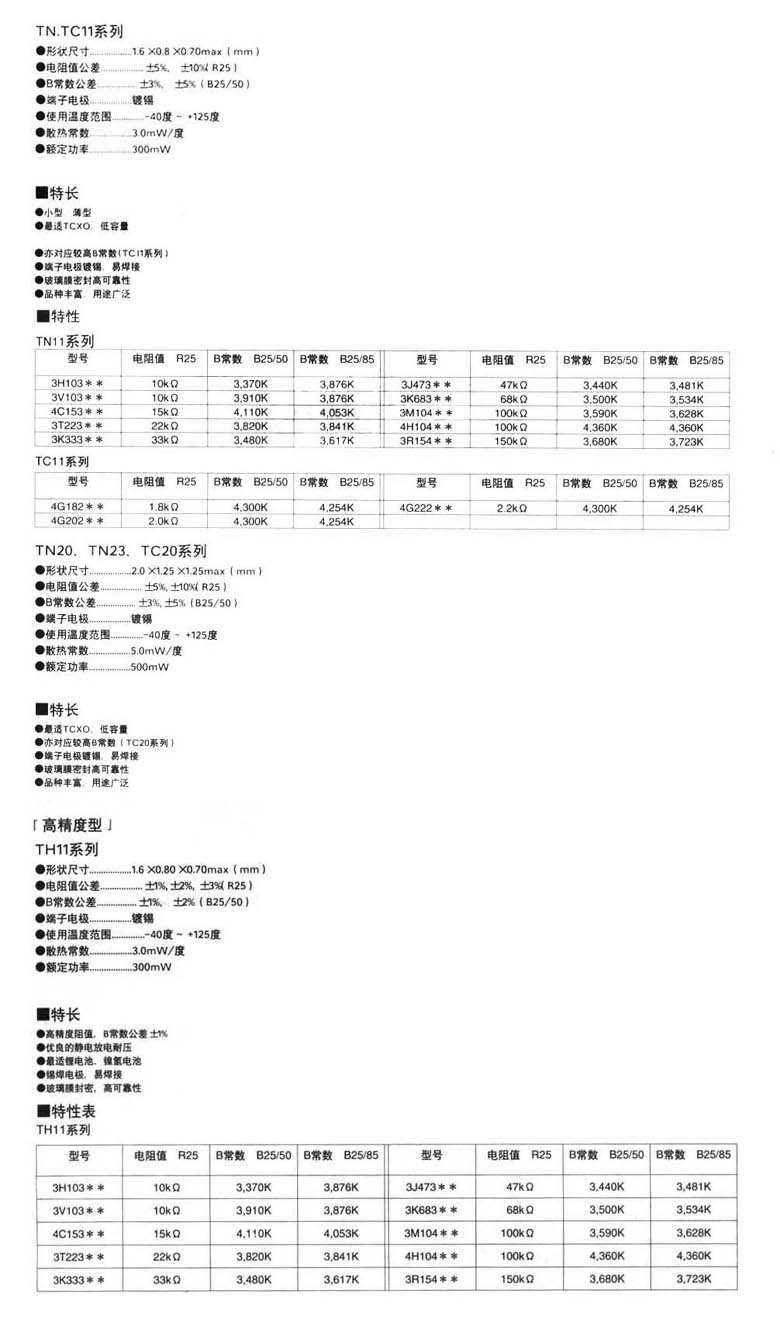

TN11
, TC11 , TH11
|
1.8k
~ 150k
|
 |
||||
|

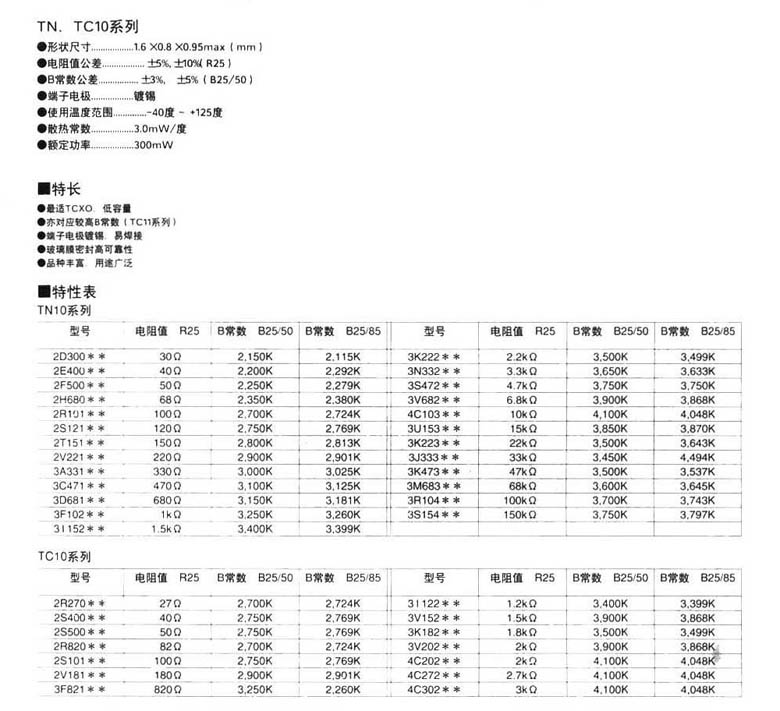

TN10
, TC10
|
30
~ 150k
|
 |
||||
|

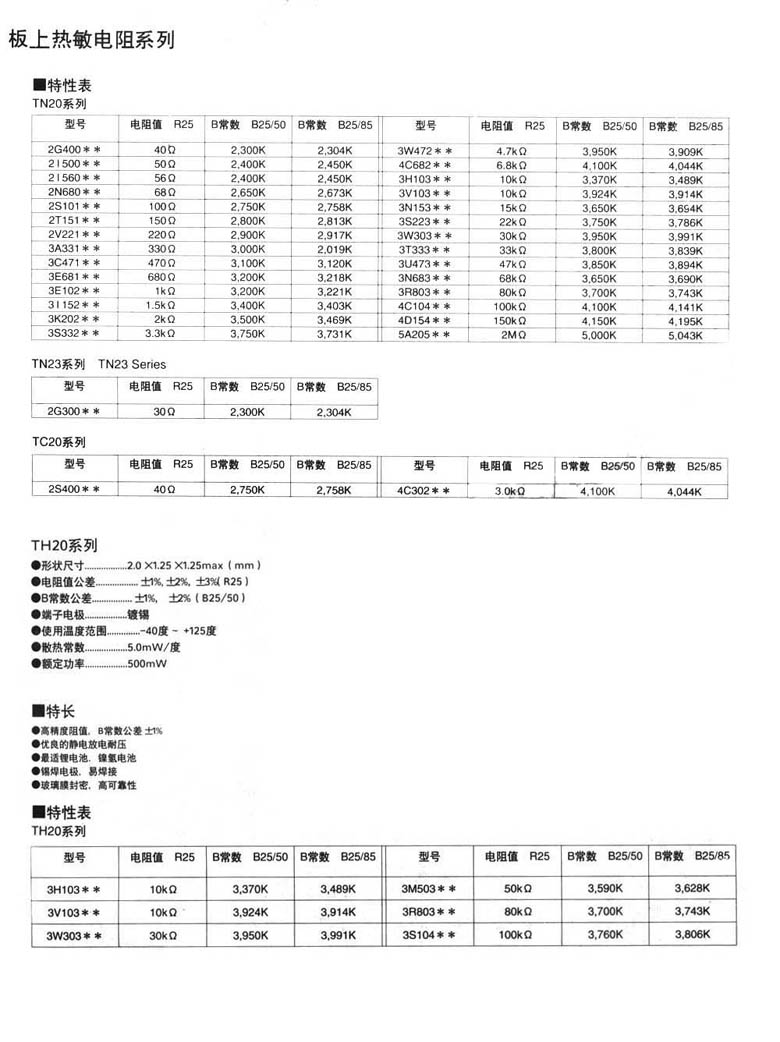

TN20
, TN23 , TC23 , TH20
|
30
~ 2M
|
 |
||||
|

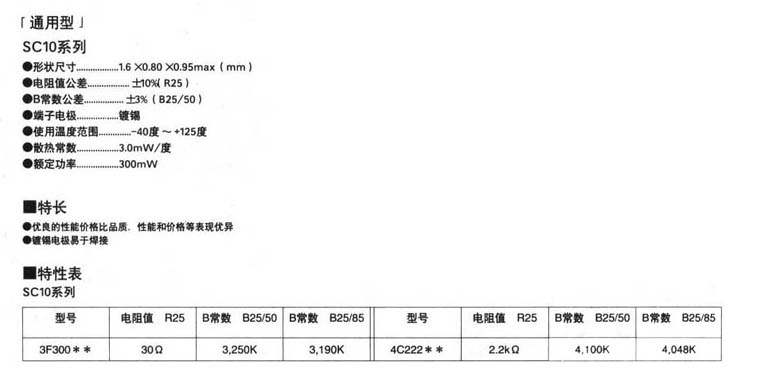

SC10
|
30
~ 2.2k
|
 |
||||
|

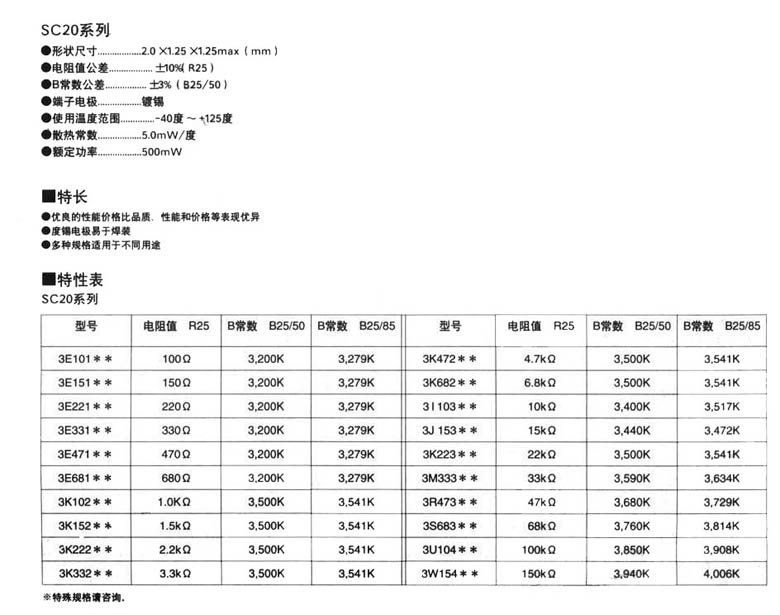

SC20
|
100
~ 150k
|
 |
||||
|
MN18
, MH18
|
圓筒形貼片熱敏電阻
|
-
40 ~ + 150
|
2k
~ 150k
|
 |
||
|
CN25
, CH25
|
縱形導熱敏電阻
|
鍍錫銅合金鎳
|
-
40 ~ + 110
|
30
~ 1M
|
 |
|
|

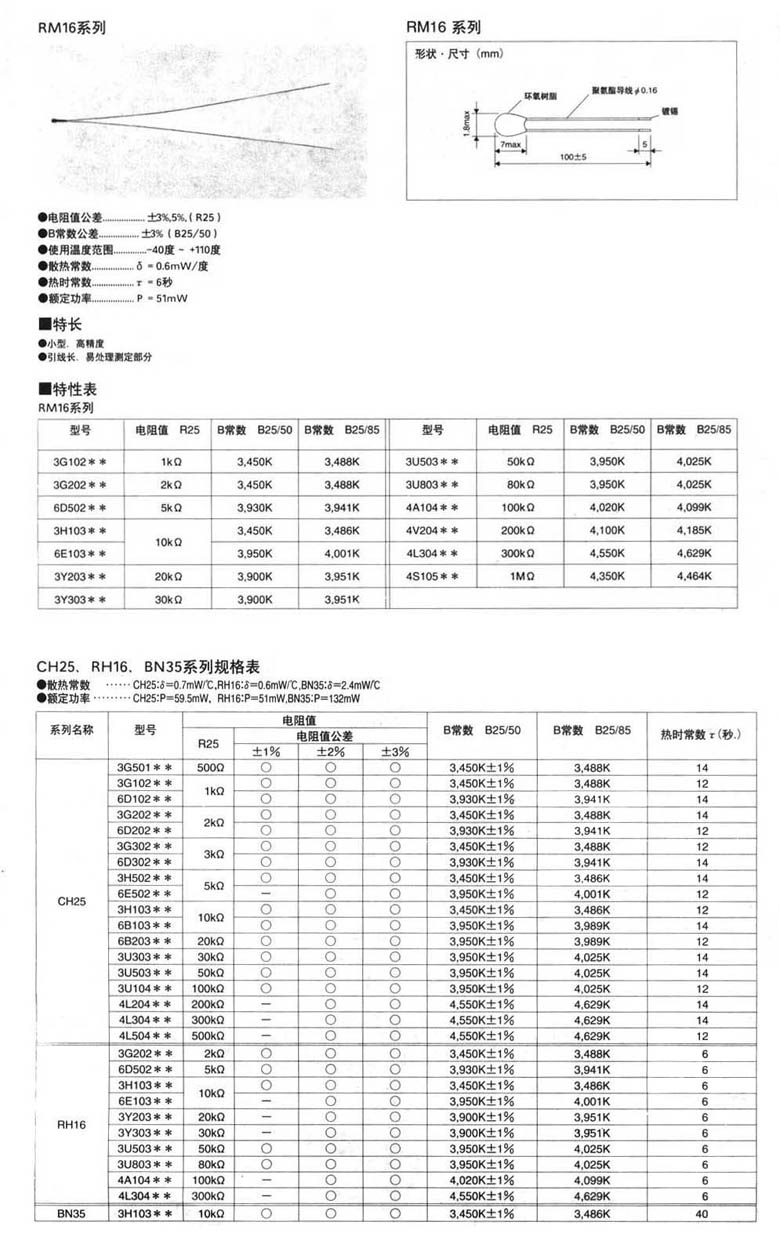

RM16
, RH16
|
聚氨酯膜
|
1k
~ 1M
|
 |
|||
|

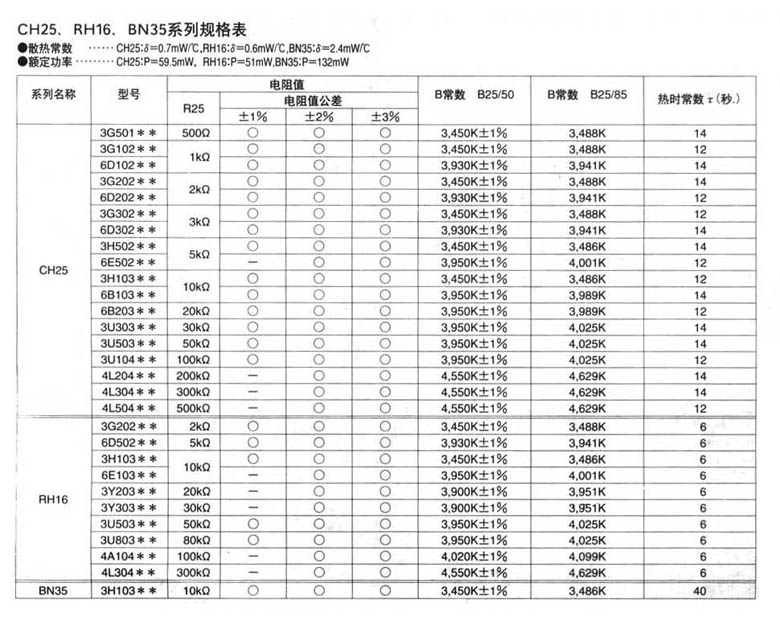

BN35
|
PVC導電線
|
-
40 ~ + 80
|
10k
|
 |
||
|

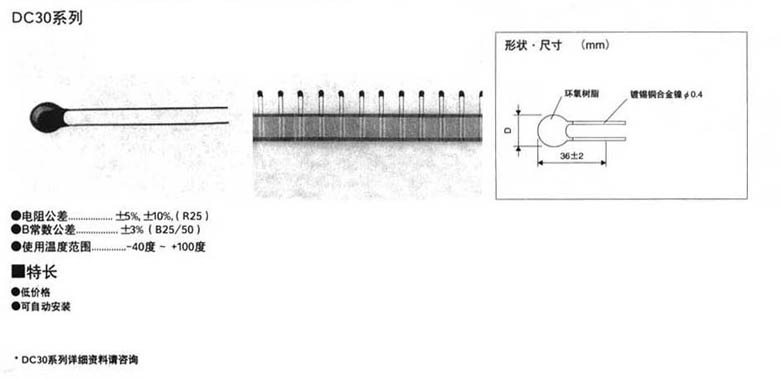

DC30
|
鍍錫銅合金鎳
|
-
40 ~ + 100
|
300
~ 200k
|
 |
||
|

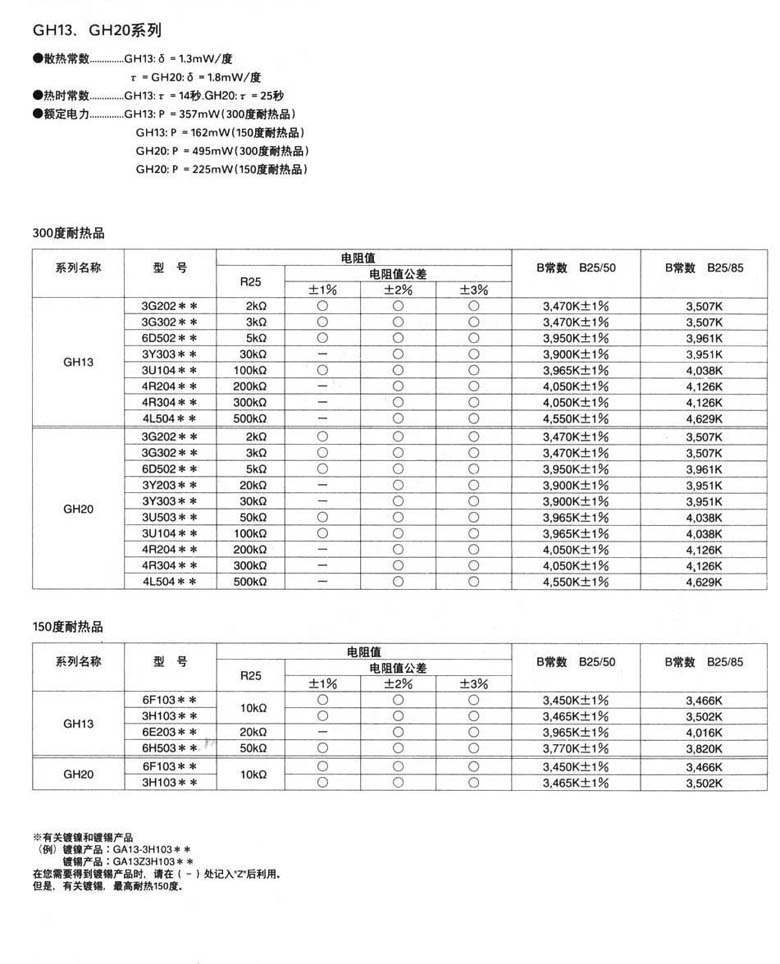

GA13
, GH13
|
軸向導熱敏電阻
|
鍍錫或鍍鎳
|
-
40 ~ + 300 &
- 40 ~ + 150 |
2k
~ 1M
|
|
|
|
GA20
, GH20
|
2k
~ 1M
|
 |
||||
|
包裝方式圖
|
|
|
|
|
|
|
|
熱敏電阻溫度傳感器
|
|
|
|
|||
|
|
|
|
|
|
|
SURGE ABSORBER 放電管 |
|
|
|
| 防過壓吸收器(DSA , DSP , DSS) |
 |
|
| 防過壓吸收器(DSA) |
 |
|
| 防過壓保護器(DSP) |
|
|
| 防過壓清除器(DSS) |
|
|
| 高電壓 DSA , DSP , DSS 系統列 |
|
|
|
|
|
BLUETOOTH ANTENNAS 藍牙天線 |
|
|
|

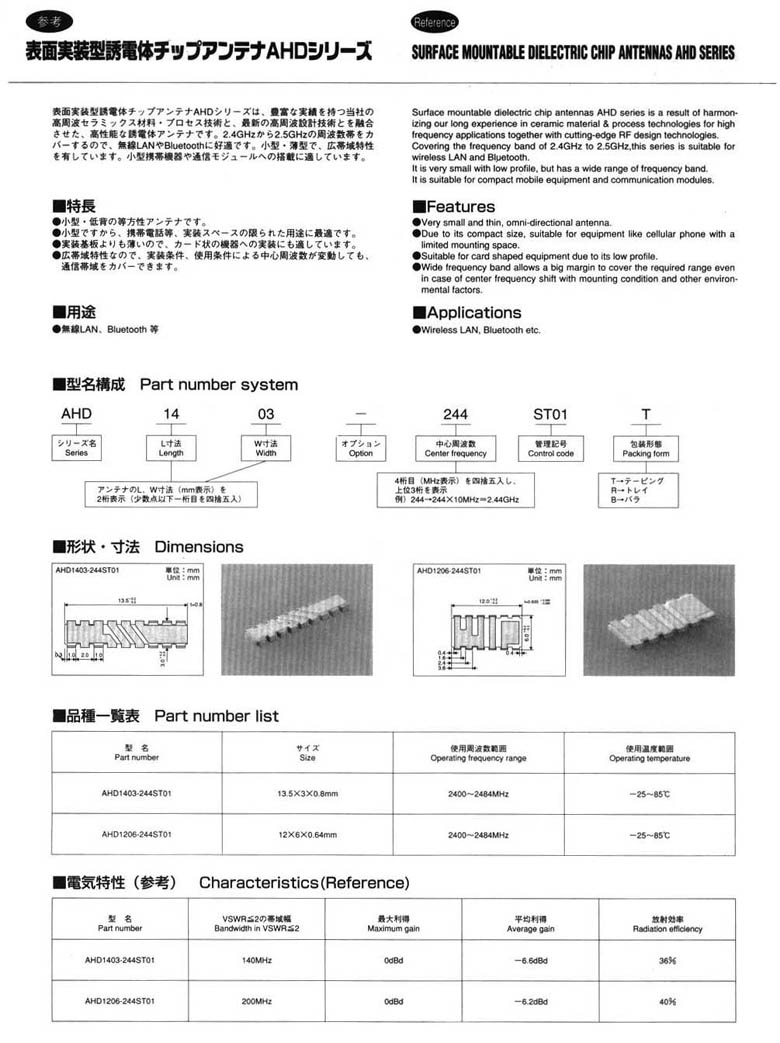

| AHD |
 |
|

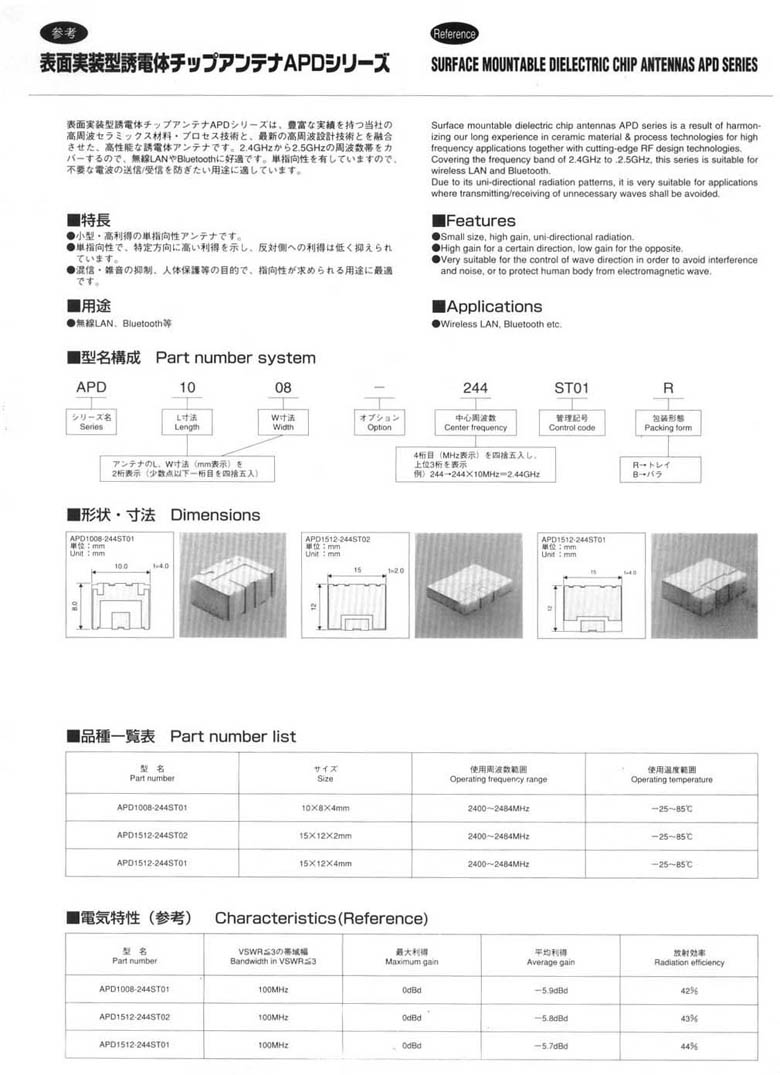

| APH |
 |
|
|
|
